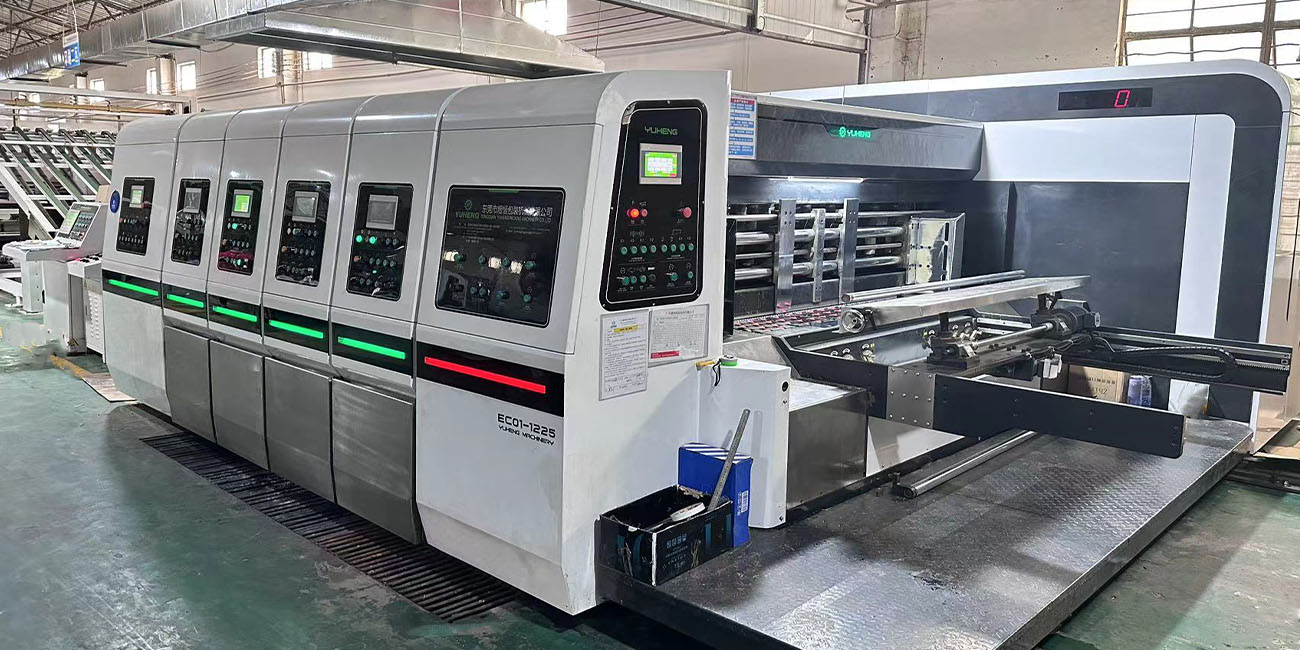

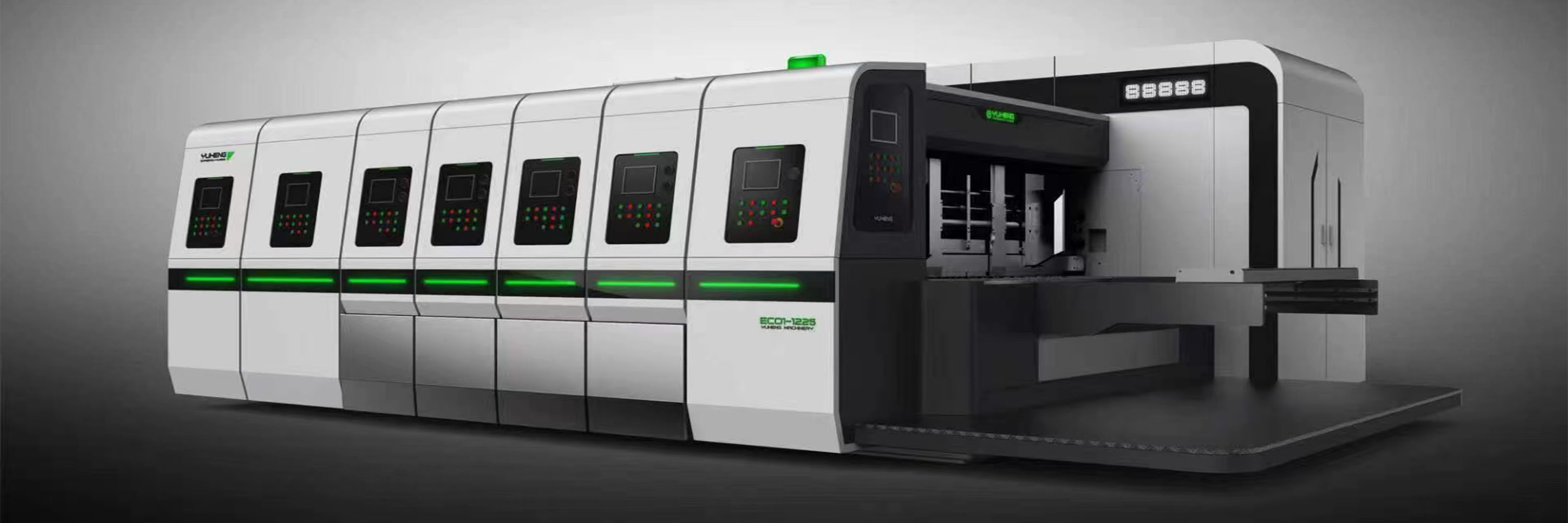

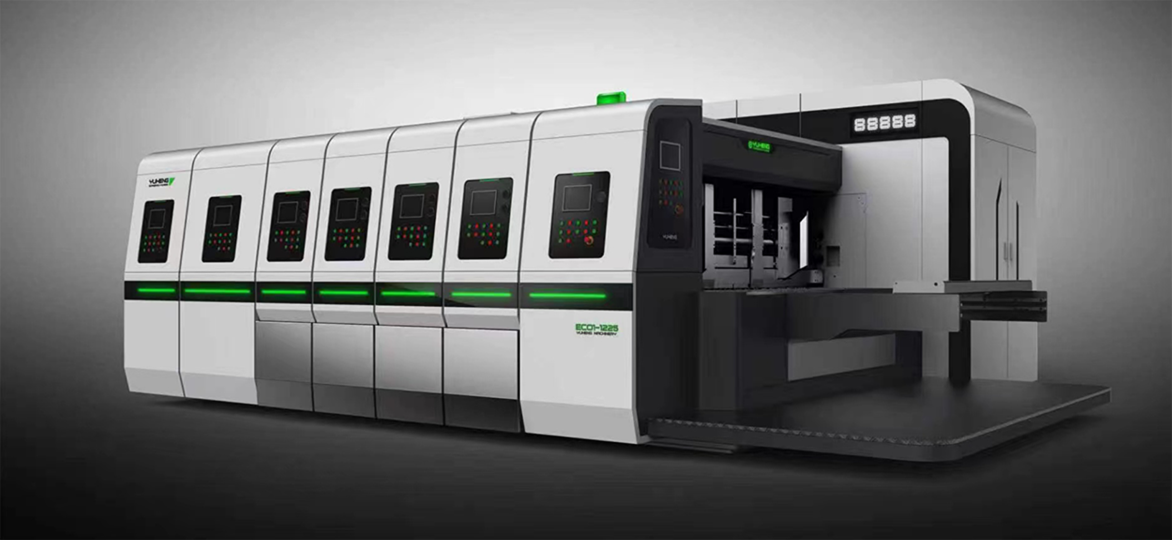

Automatic Full process adsorption Flexo Printing Die Cutting Slotting Machine for Carton Boxes
2023-08-31 14:49:58 Page Views:
1. The electric appliances of the whole machine adopt the product of SCHNEIDER made in FRANCE (optional).2. Straight gear drive.The gears are after high frequency quenching and
grinding.3. All the rollers are plated with chromium to encrease their hardness.4. Spray circulated oil lubrication.5. Return to zero and adjust printing plate
automatically.6. Module-designed. Multicolor printing sections can be combined as your requests.7. The side baffle of feeder and slotter are all adjusted electrically.8. PLC,
touch screen and frequency-variable controller are adopt,accurate and reliable.
product Details
Product Description
Full adsorption sloting die cutting machine
Function and characteristic：
The whole line is designed and made for high quality,high speed,high efficiencyhigh stability and high safety,convenient for quick order update and operation.
Made with high quality materials and parts.
Well hardened and ground transmission gears with hardness more than 60(HRC).
Auto zero return and auto reset.
All gaps between cylinders and roller are computerized or motorized adjustment.
Vacuum transfer system for all printers.
Key-free connection rings to reduce central wear to keep stable precise printing.
All cylinders and rollers are hard chromed for ideal hardness.

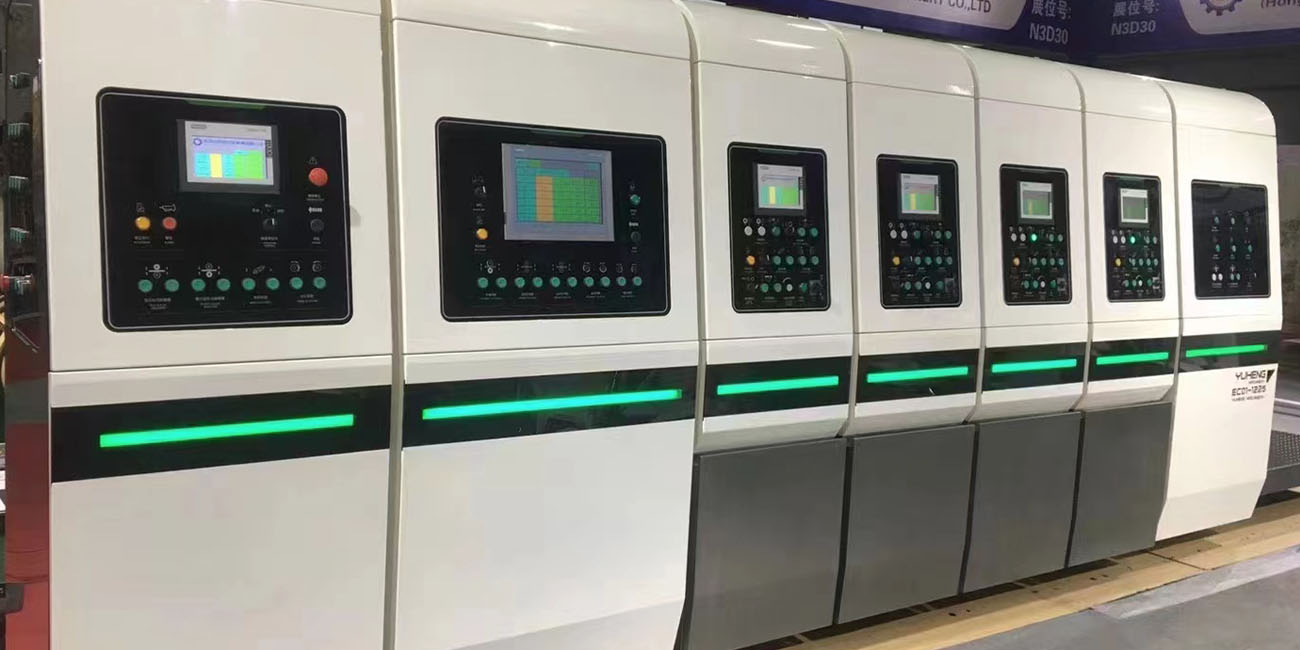

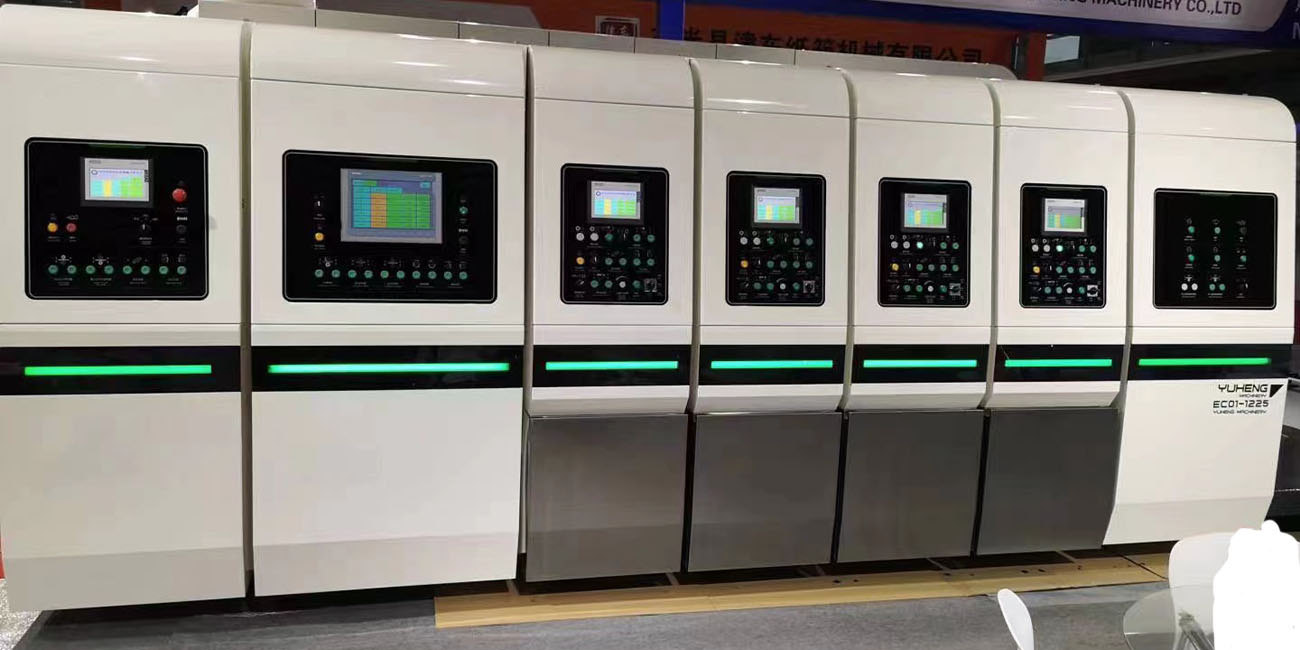

Use imported PLC. touch screen for multifunctional control.
Able to save daily orders to speed up the order update.
All electric, electronic and pneumatic components are of European standards.
Model
ECO1-08
ECO1-12
ECO1-16
2000
2200
2500
2800
2800
3200
The hightest speed(pcs/min)
350
350
250
250
200
200
The single paper size(mm)
810✖️2010
810✖️2210
1150✖️2510
1150✖️2810
1530✖️2810
1530✖️3210
Minimum paper size(mm)
250✖️400
340✖️600
430✖️700
Every piece of paper size(mm)
1200✖️2010
1200✖️2210
1600✖️2510
1600✖️2810
2000✖️2810
2000✖️3210
The biggest printing area
800✖️2000
800✖️2200
1200✖️2500
1200✖️2800
1600✖️2800
1600✖️3210
Minimum slot spacing(mm)
185✖️90✖️185✖️90
250✖️110✖️250✖️110
280✖️120✖️280✖️120
Standard plate thickness(mm)
7.2
Applicable board thickness(mm)
1.5-11
1.5-12
1.5-12
Product Desplay

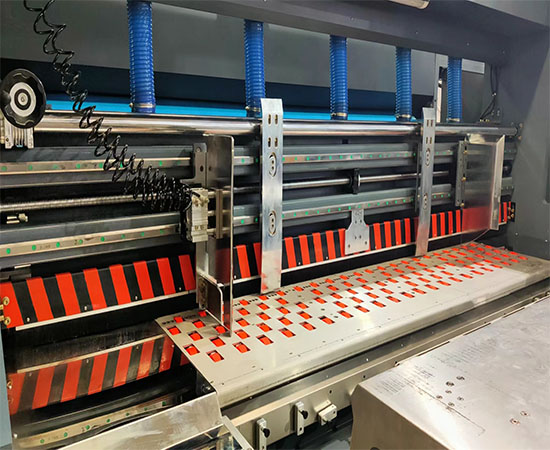

Finction of Feeding Unit:
Roller type front feeding structure,rounds,multipiont suction feeding,high friction,high speed,paper feeding smoothly and accurate.

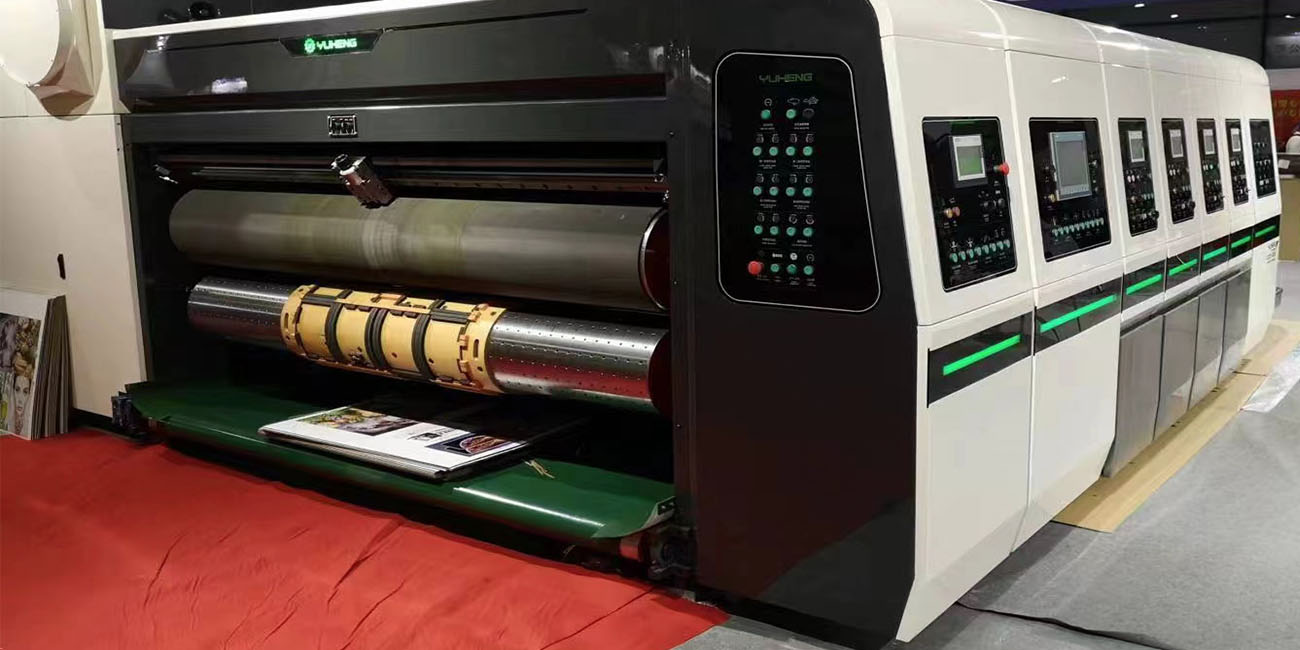

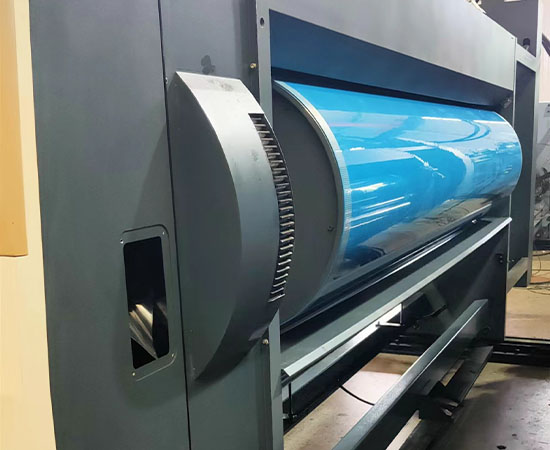

Finction of Printing Unit:
The printing rooler and the transmission shaft are all adopting high-quality steel,computer dynamic balancing
correction,eliminating the centrifuga force.
Function of Slotting unit:
Slotting knife carton height adjustment have collision protection,not damage the machine.

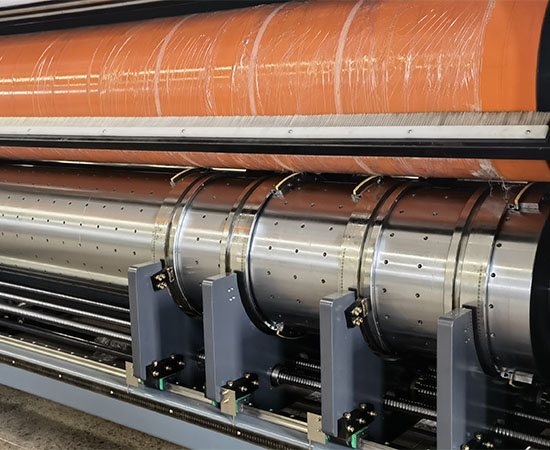

Function of Die-cutting Unit:
Rubber roller cutting repair mechanism,the rubber gasket can be use repeatedly,thereby,it can greatly save cost.
