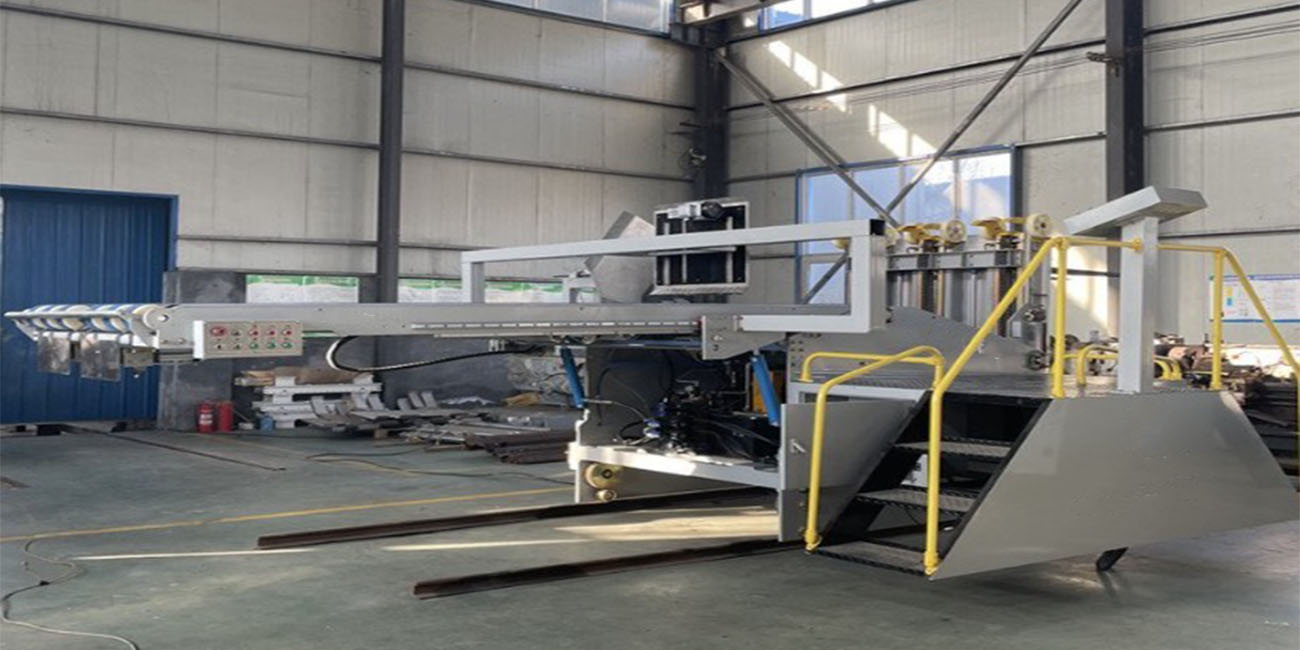

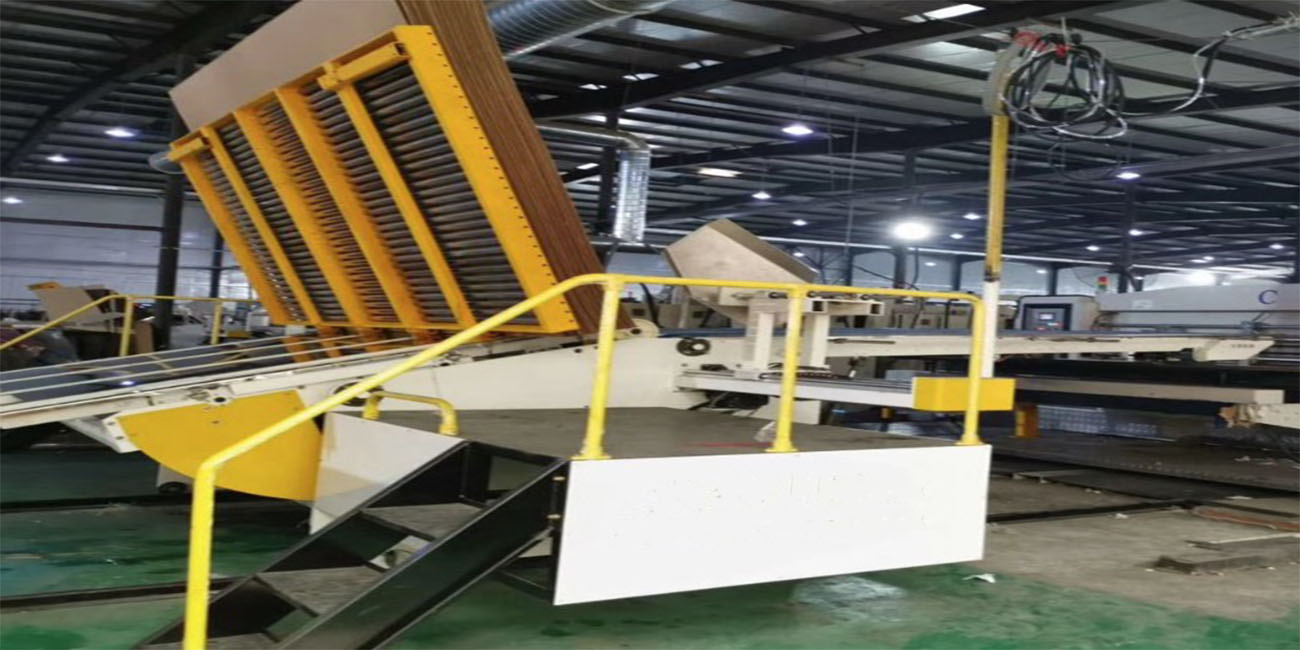

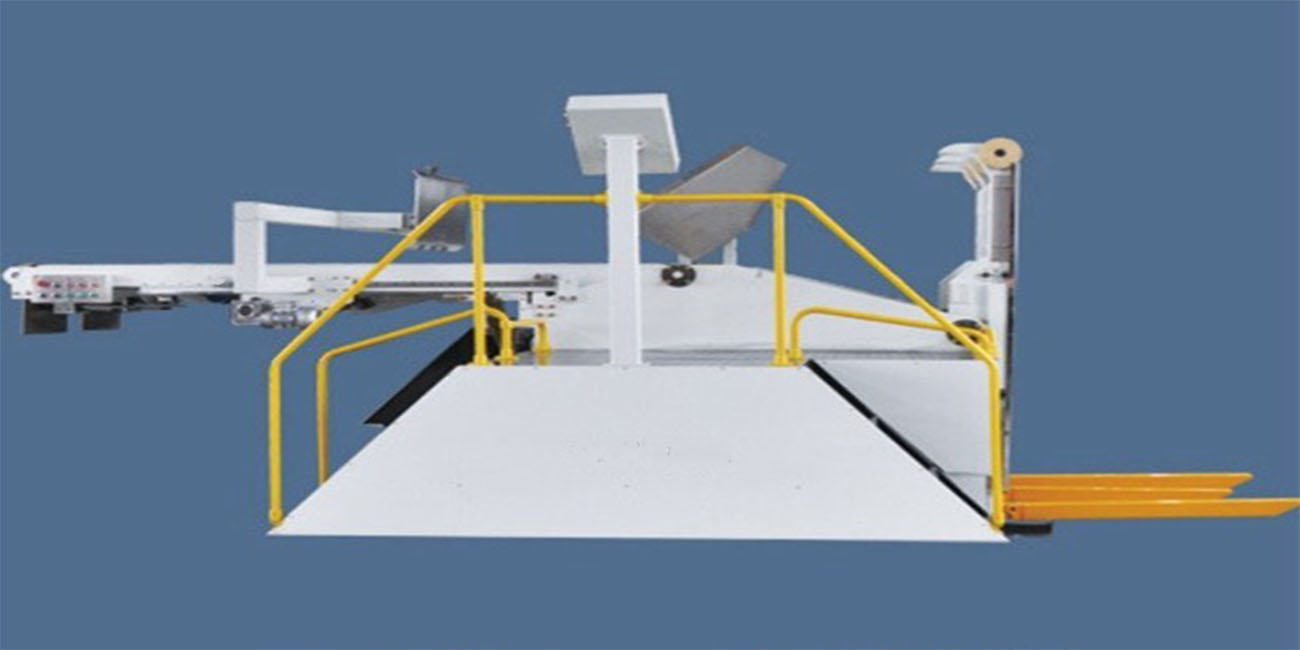

Mainly used for leading edge equipment (such as printing press, die cutting machine, etc.) paper, can match the speed of 100~350 pieces/min.
Product Features:
Reduce costs: single operator, reduce the number of workers, improve work efficiency.
Reduce waste: Reduce the number of workers' contact with cardboard, you can reduce the damage of manual intervention on cardboard.
Stable performance: The current more mature hydraulic system, gear motor to provide power, stable and durable.
Simple operation: the button adopts a graphical interface, easy to identify, and can be operated on the machine.
Stable performance: The use of the current efficiency of mature 2 sets of hydraulic systems, the tilt, rise, conveying bed are high and low hydraulic cylinder to provide power, output, stable and durable; Conveyor belt transmission using hydraulic motor to provide power, occupy small space, large torque, uniform transmission.
Simple operation: button and touch screen man-machine graphical interface, PLC control, easy to identify and easy to operate, real-time display of working status.
Easy to use: paper with user ground logistics use, convenient and efficient.
Main technical parameters and performance：
Cardboard size range: 300 X800 mm-1200 X2400 mm
Cardboard stacking height: 1800 mm
Packing weight: 1500 Kg
Number of stacked columns: single column
Cardboard lifting mode: hydraulic lifting
Fork turning power: hydraulic drive
Horizontal conveyor bed lifting power: hydraulic drive
Conveyor belt power: hydraulic motor (independent hydraulic pump station to ensure smooth delivery)
Side and front gears, pneumatic alignment, digital adjustment of side gears.
Machine movement: the machine itself can move back and forth, and the machine automatically moves back when the printing press is split.
Maintain the height of the cardboard during the work, and the lifting fork automatically pushes the cardboard up and down with one key.
The conveyor belt can automatically start and stop according to the height of the paper feed bin of the printing press
Service
Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
To solve the problems with videos/pictures.
One year warranty for spare parts change.
full hydraulic paper machine is a special equipment for corrugated carton manufacturers to provide, widely adapted to a variety of cardboard printing press, binding box machine, flat die cutting machine and other equipment, greatly improve production capacity, reduce human demand, the best choice to achieve automation.
