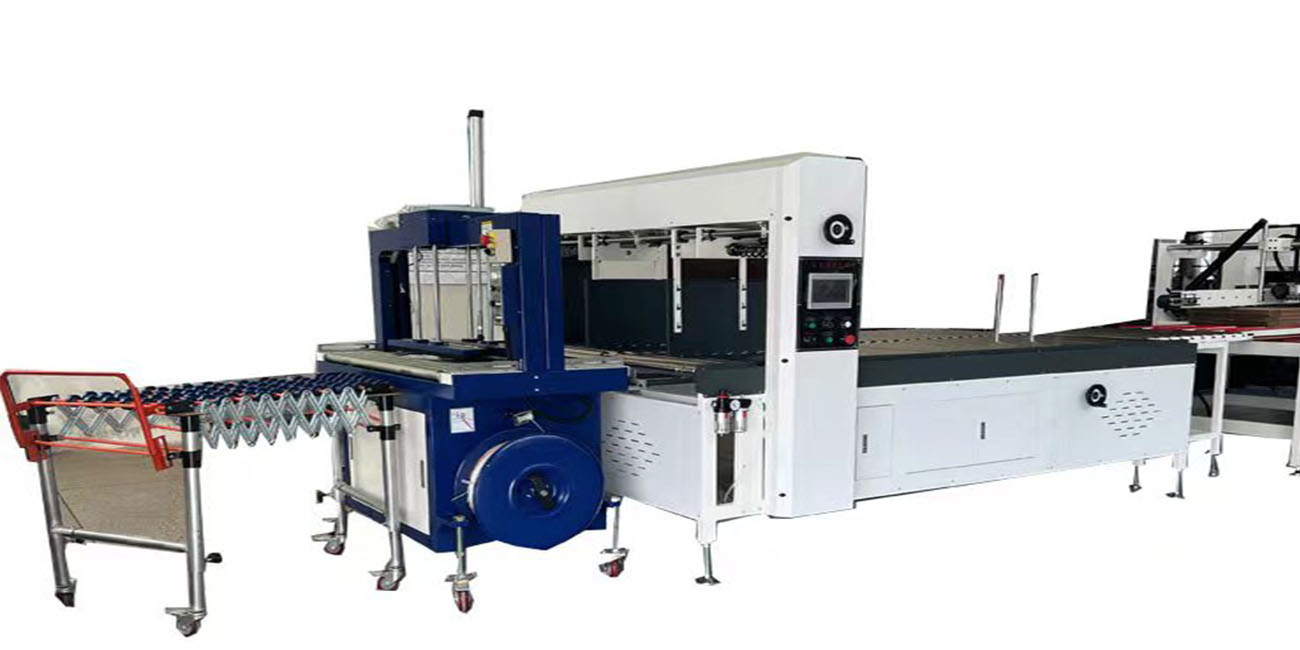

Factory Direct Sale Fully Auto Carton Bundling Machine For PP Pet Straps Full Automatic Packing Machine Line

2023-10-19 19:54:47 Page Views:
1. The product is suitable for carton manufacturers supporting the adhesive box or box line use. Can automatically adjust packing according to carton size.2. Can strapping continuous and reliable, strapping belt close to packages, joint is stable, the machine noise no damage to worker’s health.3. Instant heating, the joint working within 5 seconds.4. With auto stop function, the motor stop turn and machine keep standby model when no operation during designed time, at this time push the green button or strapping, the motor restart and working, makes it save electric.5. Adopt HMI and good PLC control, fully automatic operate, simple technology parameter and working stable.6. Easy to operate and maintenance, beautiful outlook and lone use life.
product Details


Product Describe

Automaic strapping machine

  1. Power supply:AC220V,50/60Hz,1.0KW

  2. Dimensions:L1520mm✖️W680mm✖️H2000mm

  3. Binding specifications:standard frame size:with 1250mm✖️height 500mm

  4. Working table height :850mm

  5. Load capacity:80kg

  6. Strapping speed:≤30 lanes/min

  7. Tightening force:0-45kg

  8. Strap specifications:polypropylene,width 5mm,6mm,thickness 0.5mm-0.8mm

    coil width:170mm-190mm

    coil inner diameter:200mm-210mm,outer diameter:400mm-450mm

  9. Bonding method:hot melt method,bottom bonding,bonding surface≥90%,bonding position deviation≤2mm.

  10. Machine weight:1200kg

  11. Electrical configuration:Push button switch:Siemens APT

     PLC controller:UOUNGSUN

     Relay:Schneic

     Motor(single choice): MEIWA  MCN

     Sensor switch and proximity switch(single choice): P+F, FOTEK

  12. Noise:Noise≤75dB(A) in working enviroment

  13. Environmental conditins:humidity≤90%,temperature 0-40℃

Fully automatic packing device

  1. Power supply:AC380V,50/60Hz,1.5KW

  2. Compressed air pressure:0.6MPa

  3. Dimensions:3000mm✖️2200mm✖️1900mm

  4. Working table height:850mm adjustable

  5. Load capacity:80kg

  6. Working speed:13-16 pieces/min

  7. Applicable object size:L(350-1200)mm✖️W(350-1200)mm

  8. Optional:Cross can be turned

  9. Noise:In the working environment,the noise is ≤75dB(A)

  10. Enivronmental conditions:humidity≤90%,temperature 0-40℃

Advantage

  1. Raise efficienc

  2. Cost reductio

  3. Labor saving

  4. Steady and firm

Service

Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

To solve the problems with videos/pictures.

One year warranty for spare parts change.
