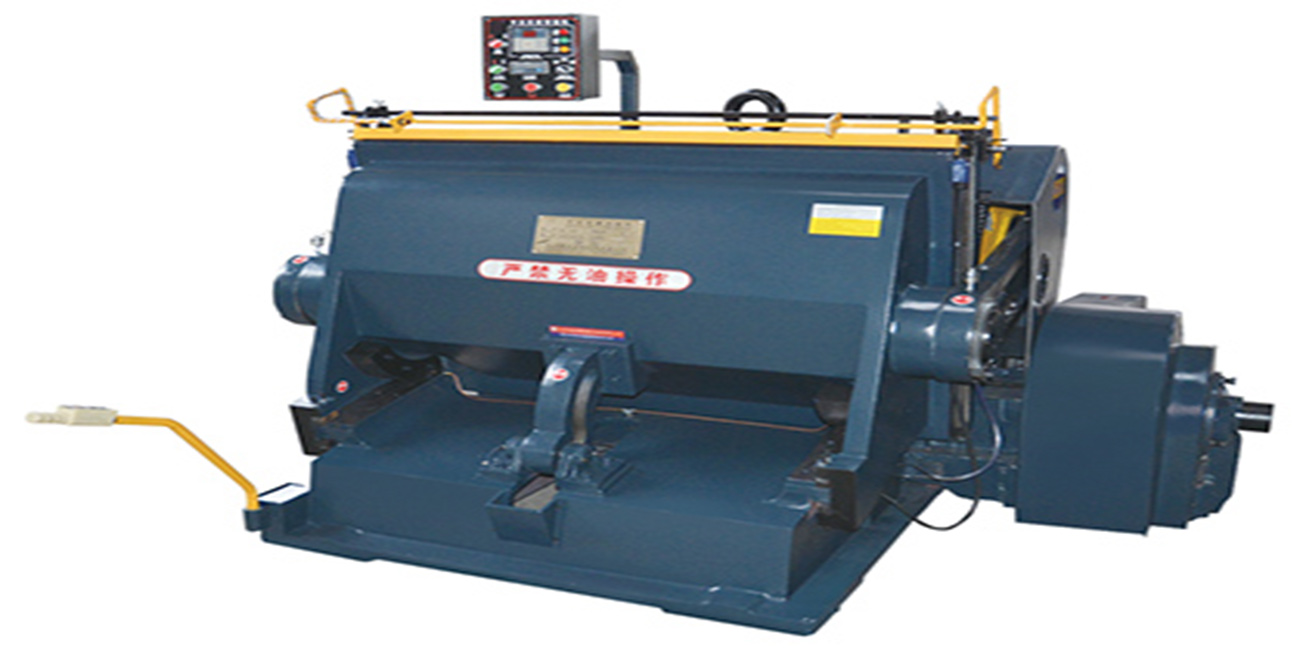

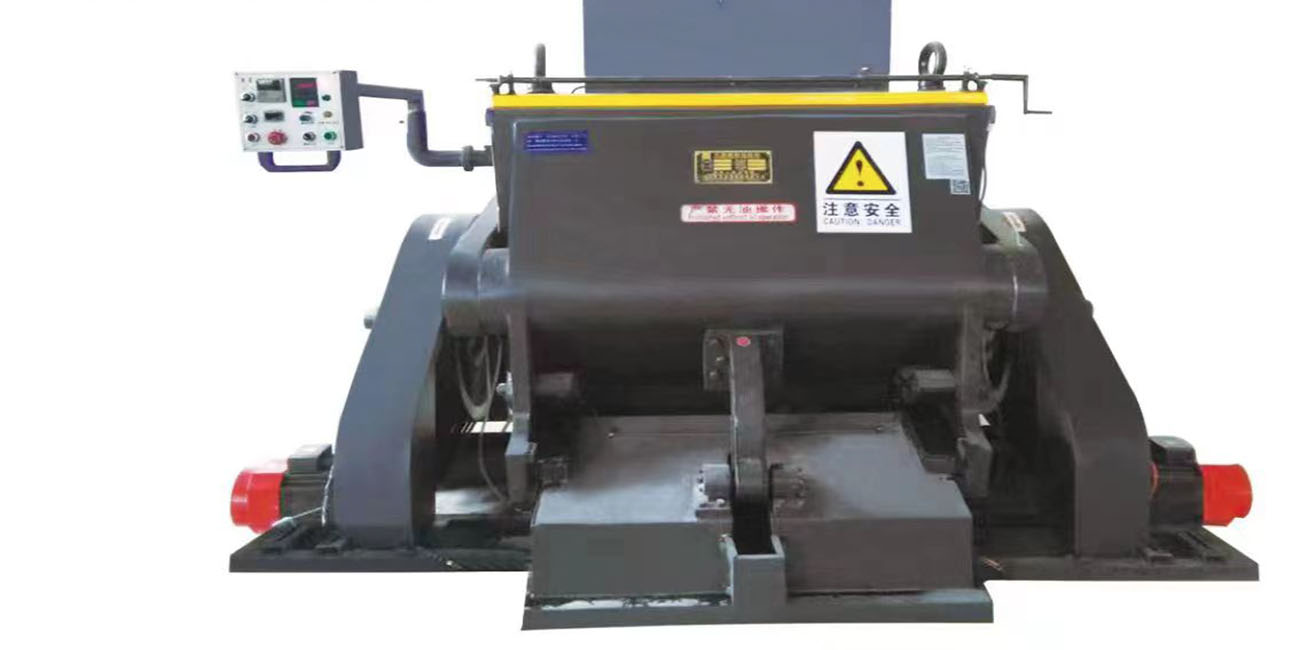

Our die cutting machine is an indispensable piece of post press equipment which is widely used for die cutting, and creasing of adhesive stickers, carrier bags, book

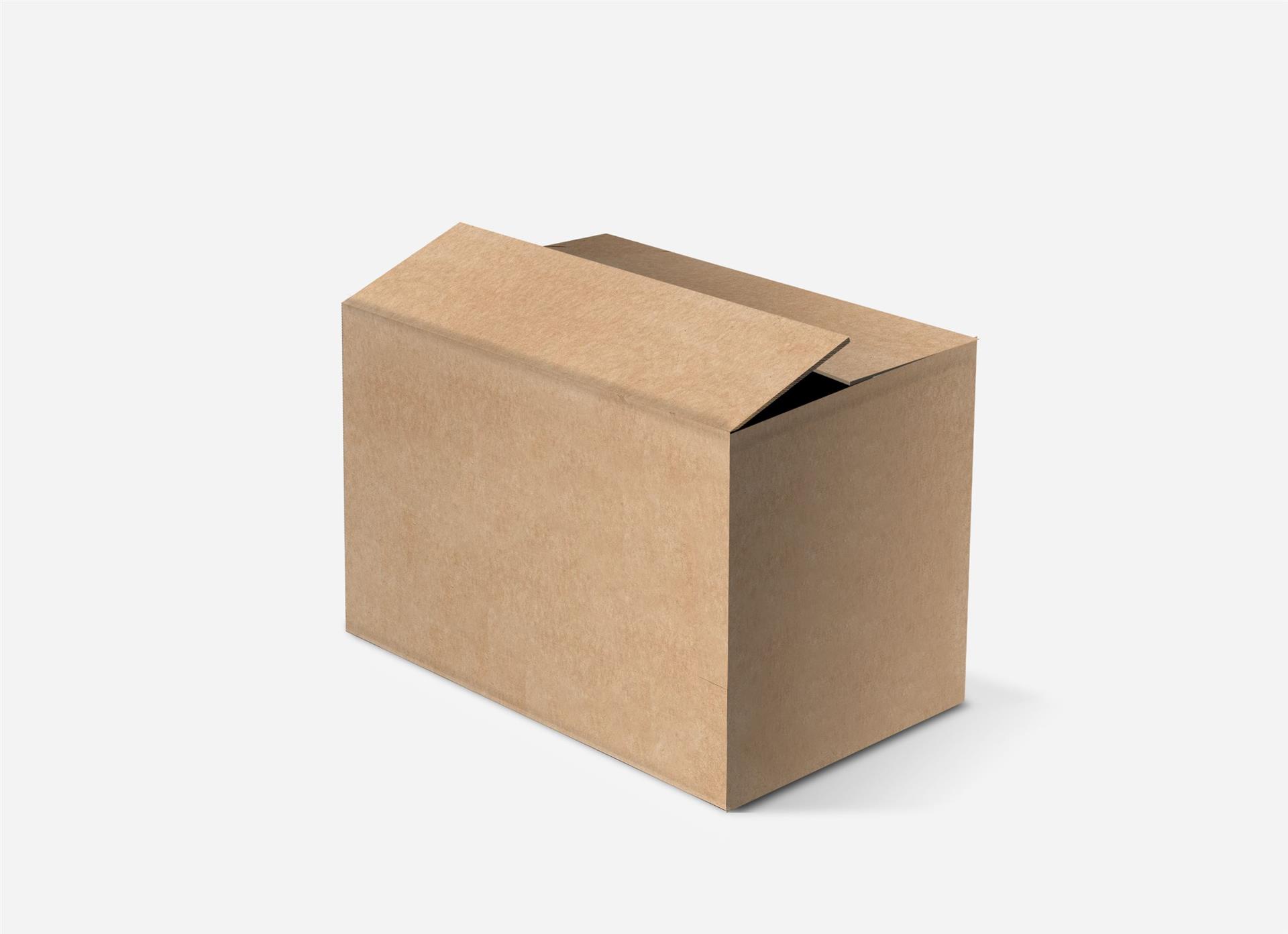

covers, packing boxes, greeting cards, desk calendars, corrugated cartons, etc. It can effectively cut the desired material into large numbers of the same
shape.
Features
1. Our die cut machine is manufactured using high quality material for high strength
2. It adopts a 2-step helical gear mechanism, resulting in stable operation, large cutting force, and low noise.
3. Single disc electromagnetic clutch ensures agile, reliable operation
4. Reasonably designed operational altitude, moving bed with a large open angle
5. Electrical system is designed in accordance with IEC standard.
6. Single sheet die cutting, continuous die cutting operations, adjustable delay range
7. Reliable safety system ensures operator safety.
Advantages
1. Our die cutting machine uses centralized lubrication pump system.
2. It adopts world famous brand electrical components.
3. Strengthened construction ensures smooth operation and long service life.
4. The adoption of active plate frame makes it convenient to install die cutting rule and adjust pressure, producing clear and beautiful results.
|
Model
|
Inner chase size
|
Speed
|
Max.rule length
|
Motor power
|
Weight
|
Dimension
|
|
ML750
|
750✖️520mm
|
25
|
＜15m
|
2.2kw
|
2000kg
|
1650✖️1400✖️1500mm
|
|
ML930
|
930✖️670mm
|
23+3
|
＜25m
|
4kw
|
3000kg
|
1750✖️1900✖️1700mm
|
|
ML1040
|
1040✖️720mm
|
23+3
|
＜28m
|
4kw
|
3500kg
|
2000✖️2010✖️1900mm
|
|
ML1100
|
1100✖️800mm
|
22+3
|
＜35m
|
5.5kw
|
4500kg
|
2000✖️2010✖️1900mm
|
|
ML1200
|
1200✖️820mm
|
20+2
|
＜32m
|
5.5kw
|
5000kg
|
2020✖️2020✖️1950mm
|
|
ML1300
|
1300✖️920mm
|
15+2
|
＜40m
|
7.5kw
|
6000kg
|
2600✖️2100✖️1950mm
|
|
ML1400
|
1400✖️1000mm
|
15+2
|
＜45m
|
7.5kw
|
7000kg
|
2600✖️2100✖️1950mm
|
|
ML1500
|
1500✖️1050mm
|
14+2
|
＜45m
|
7.5kw
|
7500kg
|
2650✖️2100✖️2000mm
|
|
ML1600
|
1600✖️1250mm
|
13+2
|
＜50m
|
11kw
|
11500kg
|
2850✖️2250✖️2100mm
|
|
ML2000
|
2000✖️1400mm
|
12+2
|
＜65m
|
15kw
|
15500kg
|
3150✖️2250✖️2300mm
|
|
ML2200
|
2200✖️1400mm
|
12+2
|
＜68m
|
18kw
|
16500kg
|
3300✖️2250✖️2300mm
|
|
ML2600
|
2600✖️1500mm
|
12+2
|
＜70m
|
22kw
|
20000kg
|
3700✖️2250✖️2500mm
|
|
ML3000
|
3000✖️1600mm
|
12+2
|
＜80m
|
30kw
|
35000kg
|
4200✖️2300✖️3000mm
|
configration:
1. The fuselage and the pressure rack adopt HT250 material
2. Big axes adopt 40CR material quality
3. Connecting rods, big gearwheel adopted 45# steel
4. Imported electrical apparatus equipment
5. Automatic oiling system device
6. Five safety switch
Service
Quality control department are
specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different
countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
To solve the problems with videos/pictures.
One year warranty for spare parts change.
