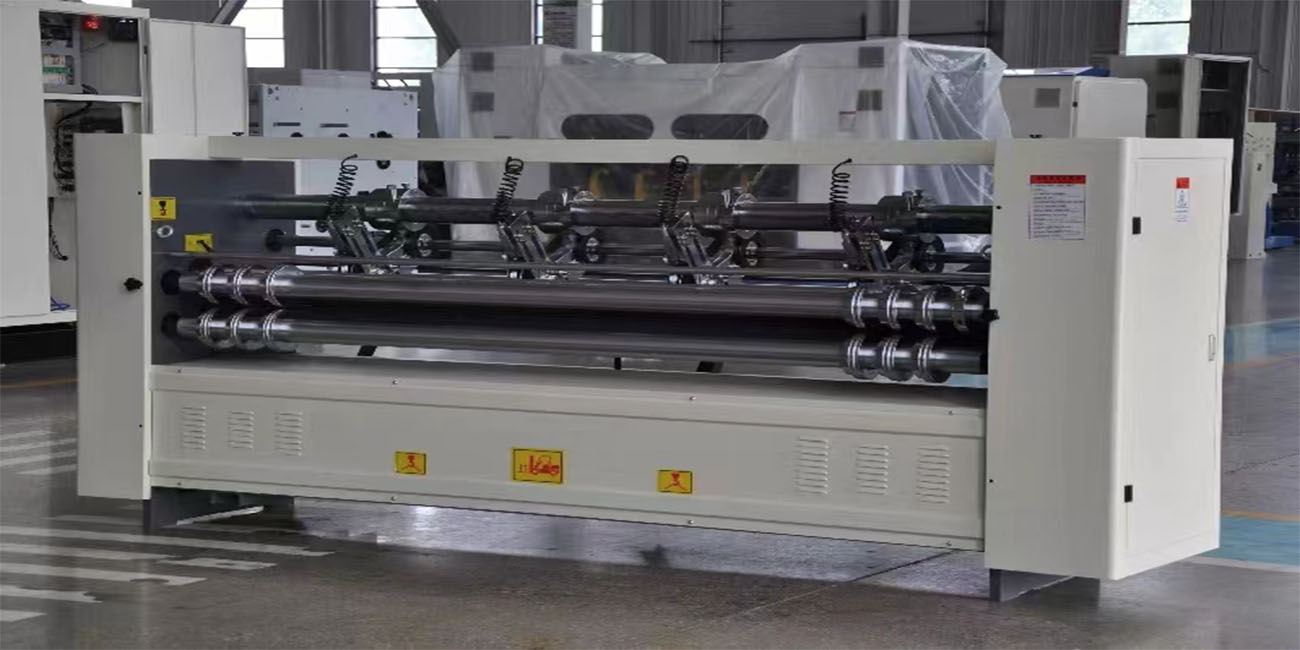

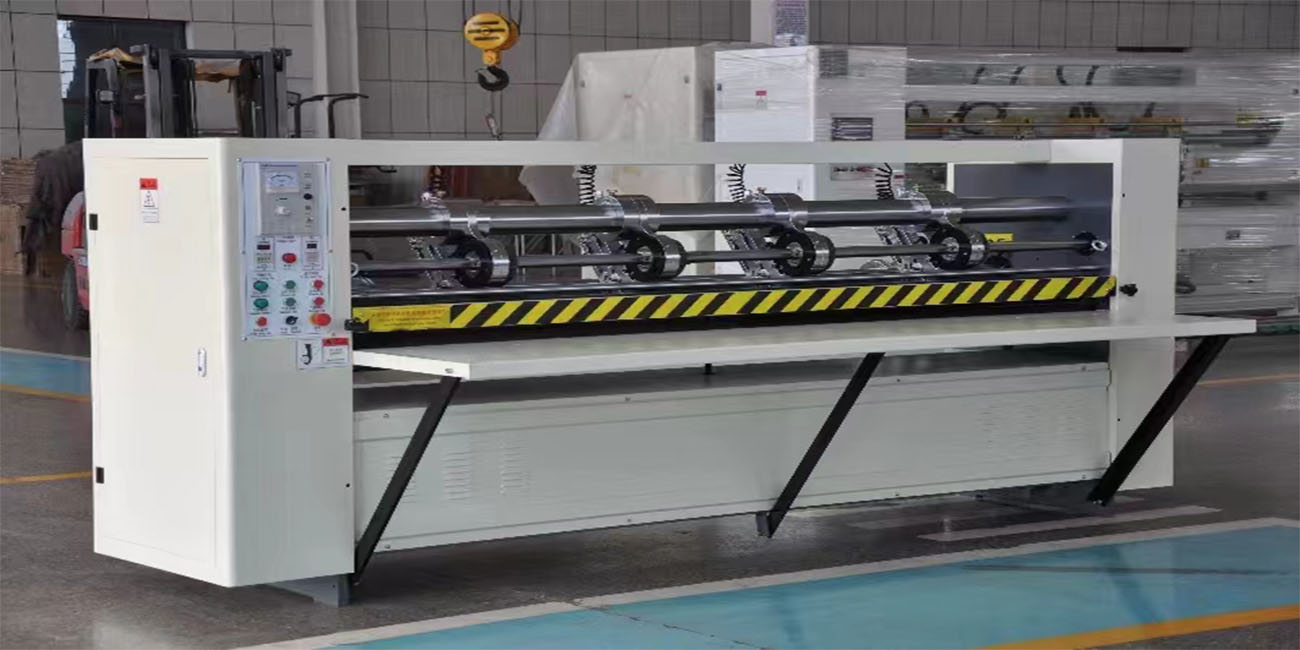

NC Slitter scorer
Product overview:As an important equipment of corrugated cadres,Complete the high quality of creasing and precise cutting.orders can be changed quickly with two machines.
Function and
characteristic:
1.The space between slitting blades is automatic adjusted,automatic locking,improve work efficiency.2.Using the synchronous belt transmission,low noise.
3.Taiwan colorful touch screen,simple operation.
4.Adopt computer control automatic or manual grinding.
5.The control system is composed of high performance and double frequency converter,energy saving,stable and reliable.
6.Keep the synchronous speed with the production line automatically.
7.Patent type passive grinding,compact structure,can work while sharpening,improve work efficiency.
|
Model
|
1800
|
2200
|
|
Max slitting size(mm)
|
1850
|
2250
|
|
Min slitting size(mm)
|
130
|
|
Scorer height(mm)
|
0-12
|
|
Blade size(mm)
|
200✖️122
|
Blade/Scorer
|
4/6,5/8,6/10,7/12
|
|
Machine dimension
|
2830✖️1300✖️2000(mm)
|
3130✖️1300✖️2000(mm)
|
|
Power
|
12KW
|
15KW
|
|
Speed
|
150m/min
|
|
Order change time
|
1-5S
|

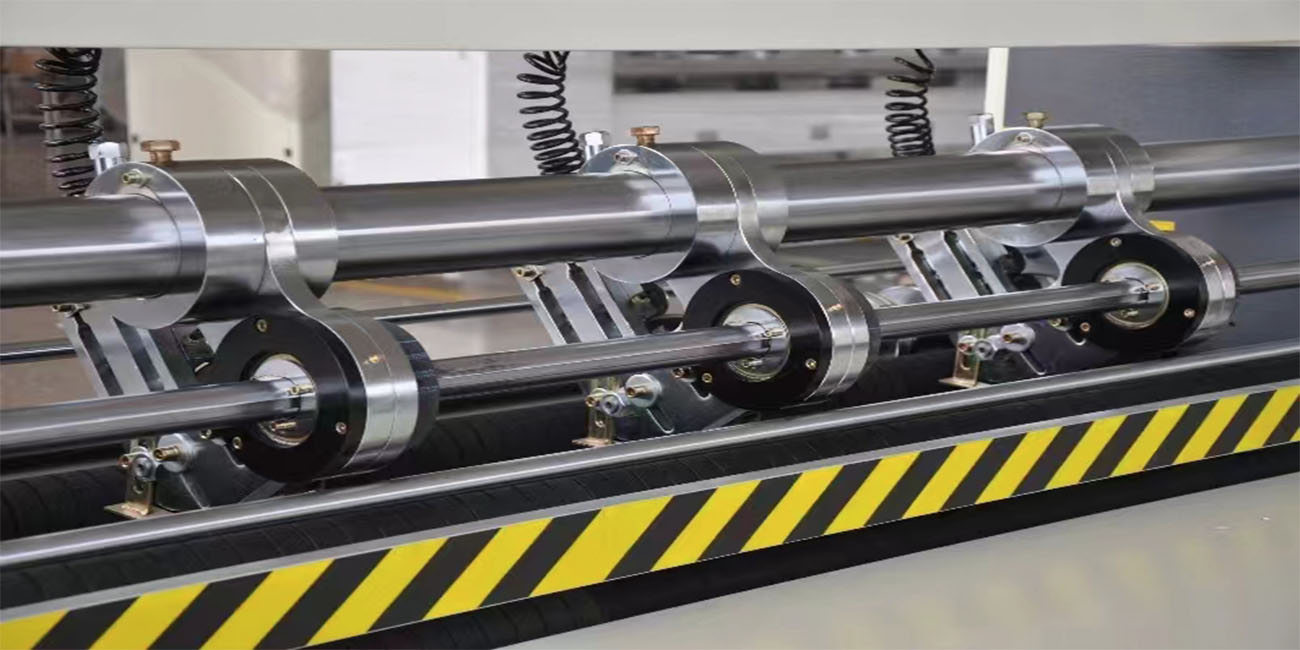

The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.

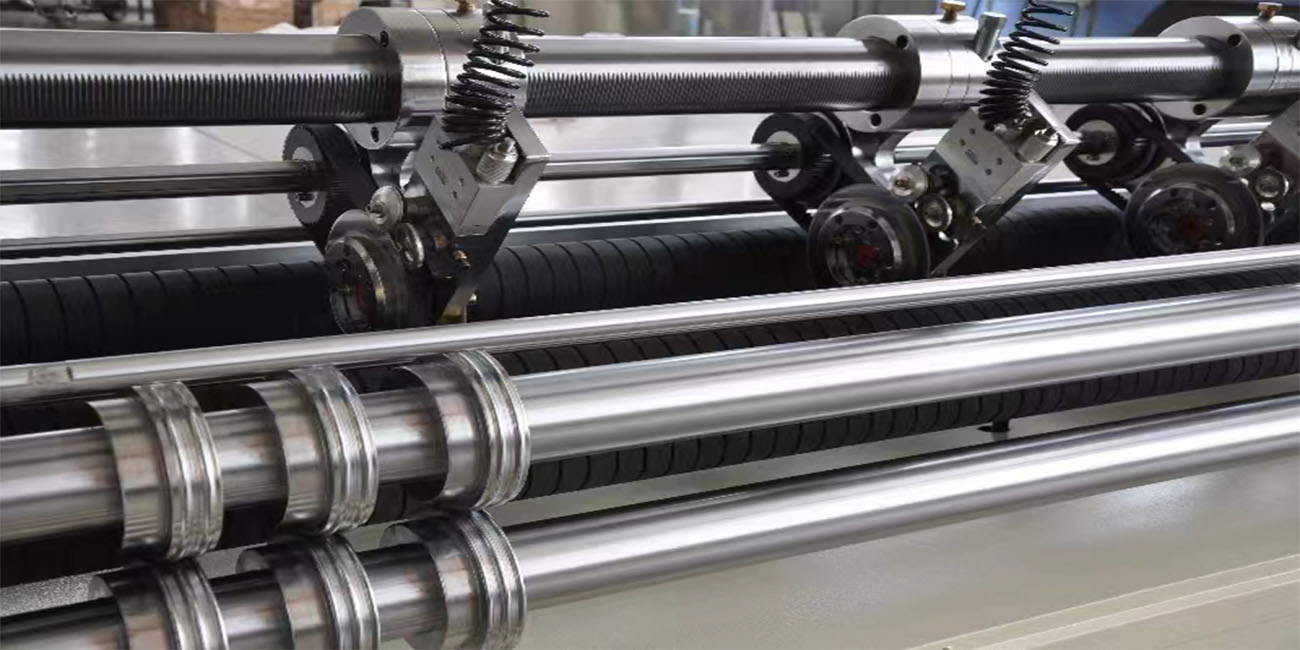

Scorer pneumatic lifting,Overall adjustment indentation depth.Scorer adopt high quality steel,improve service life.
Service
Quality control department are
specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different
countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
To solve the problems with videos/pictures.
One year warranty for spare parts change.
