Production
Description
Main Technical Parameters
|
Quantity of print head
|
64(optional quantity with 64)
|
|
Printing area
|
1050mm
|
|
Printing head(1 pass)
|
=4000m/h
|
|
The max printing resolution
|
≥200✖️1200d pi
|
|
The min text
|
Digital english 1.5mm
|
|
Graphics for mat support
|
PDF,JPG,BMP,TIF
|
|
Color model
|
C,M,Y,K
|
|
Ink type
|
Water bassed ink,Water proof ink,UV ink
|
|
Printing head
|
High precision print head
|
|
Drying speed
|
Drying after printing for carton(the others according to different materials)
|
Ink-provide
|
Two ink supply,Fully enclosed ink supply channel efficiency
|
|
Work environment
|
Room temperature 15-32 degress C,humidity 70%
|
|

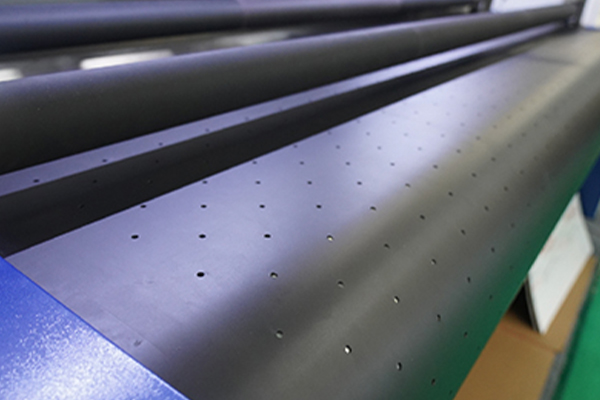

Platform
|
Vacuum adsorption
|
|
Feeding material
|
Continuous automatic,with leading edge paper feed
|
|
Machine size
|
4260mm✖️2000mm✖️1800mm
|
|
Rated power
|
=12KW
|
|
Electricity
|
380V±10%
50/60HZ THREE-phase
|
|
Electric
|
Schneider
|
|
Electrical machinery
|
Delta
|
|
Graphic control panel
|
Delta
|
|
PLC
|
Delta
|
|
RIP
|
Support direct printing without converting pictures
|
|
Printing material thickness
|
2-30mm
|
|
Weight
|
2800KG
|
|
Maximum paper feeding size
|
1800mm✖️♾️
|
Applicable industry and
materials
Packaging and printing industry,types of A,B,C,E corrugated board,honeycomb paperboard,etc.
Product
advantage
No plate making, no professional boot master, one minute change order.
Save warehouse space, environmental protection, low power consumption, CMYK computer color.
Product
detail

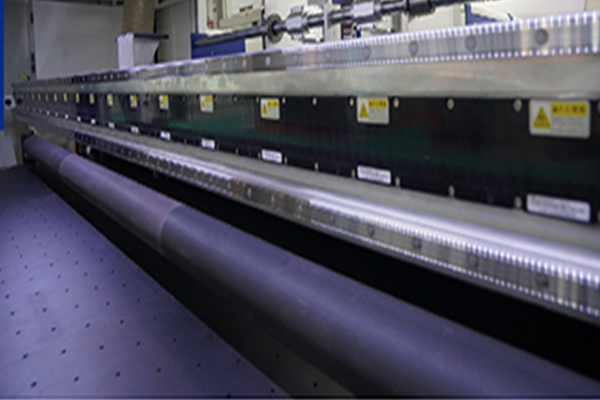

Maglev linear motor
Maglev linear motor+Japanese THK linear guide rail printing high accuracy and low noise.

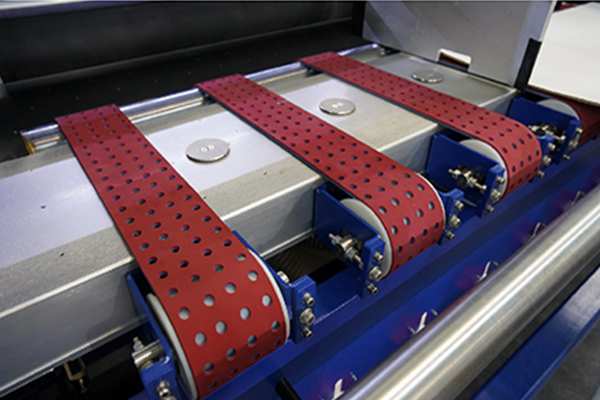

Import precision drilling guide belt
Guide belt whole suction paper feeding,accurate positioning of the medium
dose not run off.
Leading edge feed system
Servo driver imported from Japan,more stable medium
transmission.
Service
Quality control department are
specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different
countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
To solve the problems with videos/pictures.
One year warranty for spare parts change.
